150cm 110GSM Polyester Woven Antistatic ESD Fabric

Name: 150cm 110GSM Polyester Woven Antistatic ESD Fabric
Brand: allesd
Price: 1 USD

Buy cheap 150cm 110GSM Polyester Woven Antistatic ESD Fabric product

Brand Name : allesd

Model Number : AF0060

Certification : ISO/SGS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1,000,000 meters per month

Delivery Time : 25-40 working days

Packaging Details : 1roll/knitting bags

Material : 99% Polyester 1% Carbon Fiber

Color : All Colors

Width (cm) : 150

Weight (gr/sqm) : 110g/sm

Weave Style : Woven

Surface resistivity : 106 ~ 108

Features : Anti-static

MOQ : 1roll

Contact Now

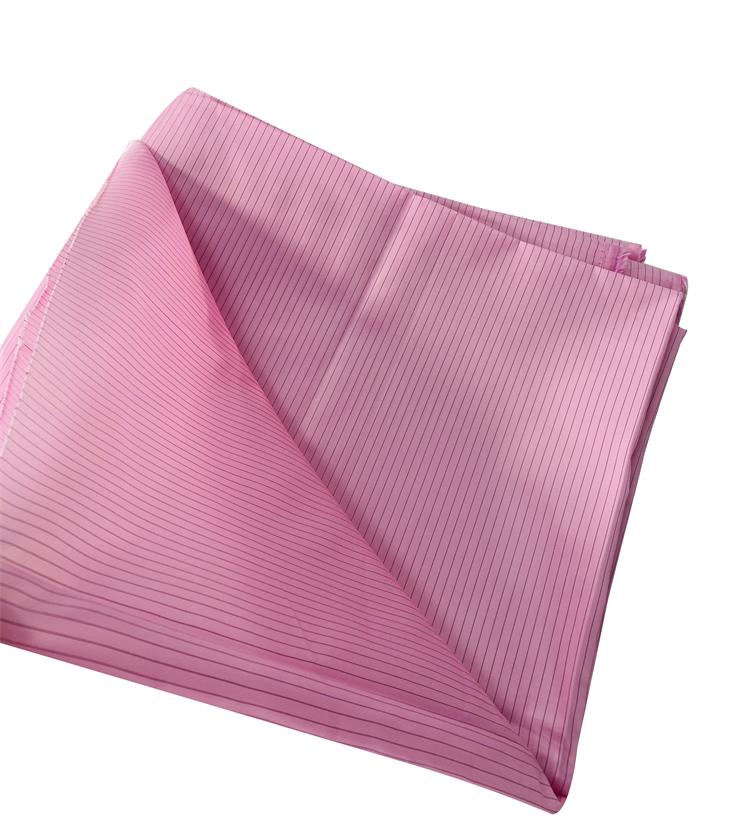

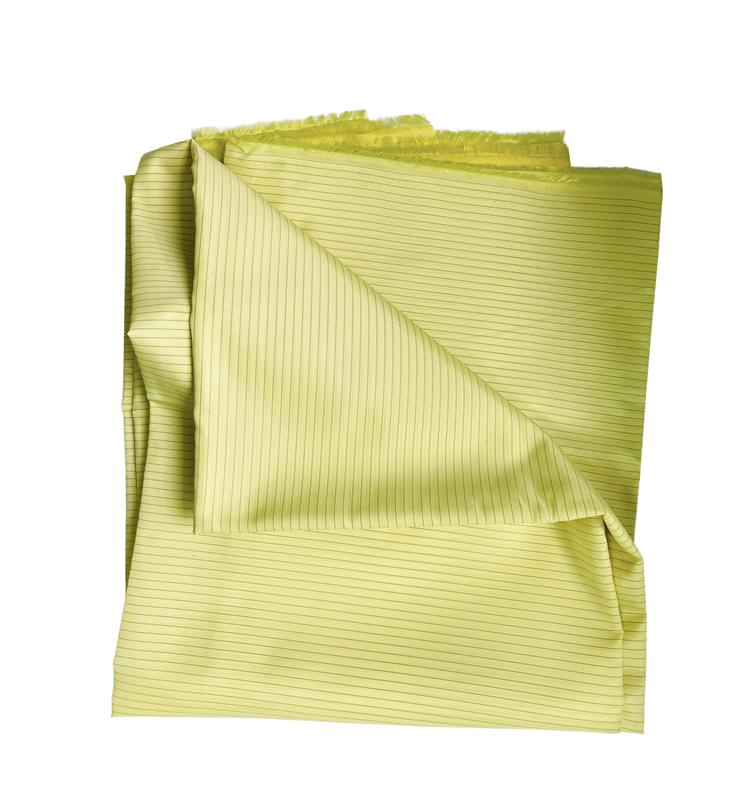

5mm Stripe Polyester ESD Anti-static Fabric Antistatic 1/2 Twill 100DX100D

ESD 1/2 Twill Polyester Fabric 5mm Stripe: AF0060

Description: Anti-static ESD 1/2 Twill Polyester Fabric,5mm Stripe

Applications: ESD protection in clean rooms, work wear

Features:

1) This is functional fabric, which is antistatic and dust free. It offers extremely good resistance to static, chemicals and abrasion.

It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology. microelectroncis

2) Meets ESD standards, system resistance 10⁷-10⁹ohms

3) It complies with EN 1149-1:2006 ESD standard

Specifications:

Spec	Value	Test Method
Material	99% Polyester 1% Carbon Fiber
Available Colors	All colors
Carbon Configuration	5mm Stripe
Width (cm)	150
Weight (gr/sqm)	110gsm
Surface Resistivity (ohm/unit)	10⁷ ~ 10⁹
Friction charges (V)	<150
Number of yarns (denier) Warp Weft	100DFDY*100DFDY
Weave style	Woven
Recommended Class Of Cleanroom	Class 100~1000

150cm 110GSM Polyester Woven Antistatic ESD Fabric
