Nonslip Surface Black PU Clean Room Stools Backless Lab ESD Chair ISO Approve
NEW Cleanroom ESD PU Stool Backless Lab Stool Nonslip Surface Black: AC21110
Description:
1, ESD Chairs are Electrostatic Dissipative or Static Control Chairs made to divert static charge to earth to reduce static charge generated by sitting and to discharge it safely through the floor grounds.
2, ESD chairs are necessary for working with electronic components. Our quality ESD chair seatings are made of puncture, water, static and stain-resistant polyurethane materials , in 13.3in. diameter seat, nonslip
3, Easy-to-use pneumatic height adjustment that allows for stress-free seat height changes
4, Esd grounding resistivity up to 109ohms.
Features:
1) Puncture resistant and easy to clean surface
2) Conductive metal chain acts as ground.
3) Adjustable height range from 440-590mm (other options available) and 360° swivel
4) Cleanroom Class 100-1000 certified.
5) ESD grounding resistivity range from 107 to 109 ohms
6) 5 star chrome conical foot, Radius 260 or 320mm
7) PA nylon glides, optional castors (If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge)
8) Warranty: 1Year
9) Pacakge: partially assembled
Technical Spec
| Spec | Value | Test Method |
| Material | Polyurethane | |
| Design | Round surface with nonslip pattern | |
| Seat Size | Dia.340mm | |
| Thickness | 40-50mm | |
| Standard Color | Black | |
| Back Tilt | Not available | |
| Seat Tilt | Not available | |
| Gas Lift | Yes | |
| Seat Height Adjustment | 440-590mm | |
| Base | 5-Star Chromed Foot | |
| Footring (Optional) | 400mm diameter adjustable chrome footring | |
| Glides/Castors | ESD or Non-ESD for options |
Parts List:
- Seat w/control Mechanism Q'ty 1pcs
- Chromed Five Star Base Q'ty 1pcs
- Pnuematic Cylinder Q'ty 1pcs
- Glides/Casters Q'ty 5pcs
- Footring (optional) Q'ty 1pcs
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring (if enclosed) onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
Applications
Widely used in EPA / Clean room environment

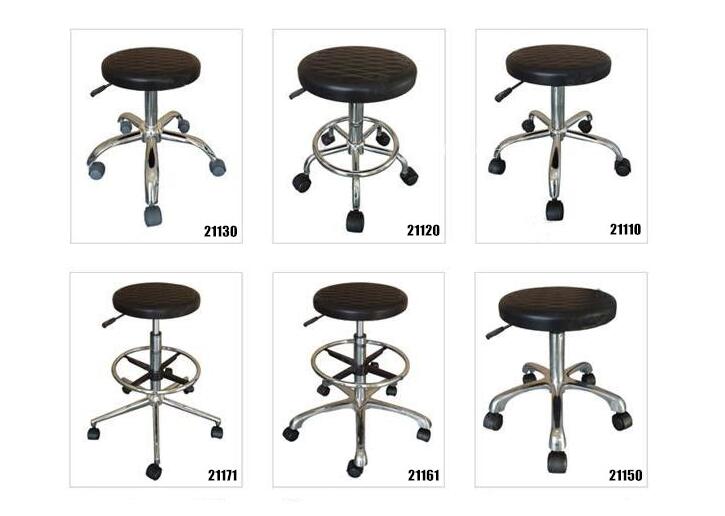

More Styles
